H | Gusoline

“Elegant lines, a fast soul”

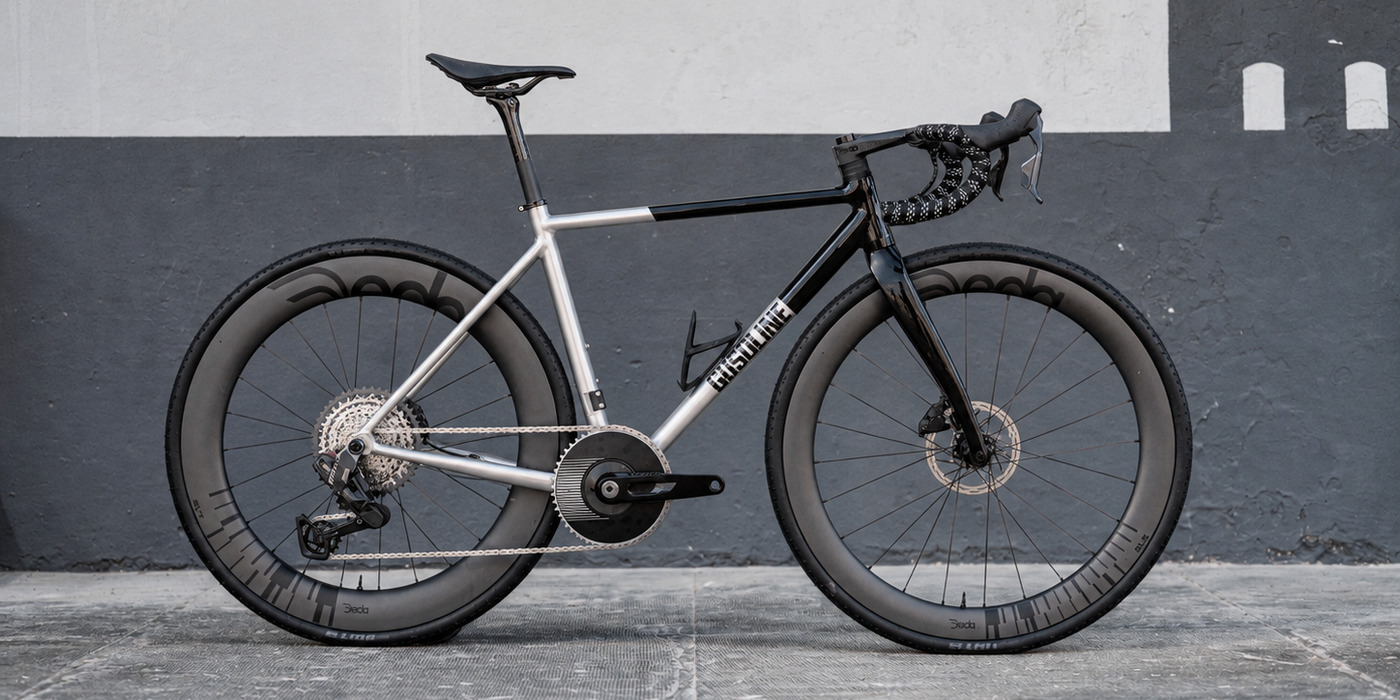

Gusoline H is crafted from 7005-series aluminum alloy tubing by Deda Acciai, customized to our specific requirements. The frame features clean, continuous surfaces, designed for speed and efficiency in motion. Housed within the tubing is a 3D-printed headset assembly. Every weld is executed with meticulous care to ensure a seamless, uniform finish across the entire frame. Entirely conceived, engineered, and manufactured in collaboration with Italian suppliers, this piece—like others in our range—leverages the expertise of skilled local artisans. Craftsmanship and uniqueness.

To reduce aerodynamic drag, we have narrowed the upper part of the head tube, incorporating a specialized bearing with a diameter reduced from 52 mm to 49 mm.

This design choice stems from a 3D-printed headset integrated into the tubes—resulting in a smaller frontal area and more continuous lines, while maintaining the same steering precision.

49 mm Upper steering bearing (size 52)

32 mm Maximum pneumatic clearance

50 / 70 Front / rear wheel profile (mm)

1 x / 2 x Single chainring, compatible with a double setup

Rigid where needed, soft where it counts

Aluminum is the stiffest material on the market—even stiffer than carbon. For this reason, there is no need to insist on a low-positioned seat-stay attachment; a higher attachment point makes the frame more compliant, especially when paired with high-volume tires (up to 32 mm).

Although we favor the modern, single-chainring (1x) road bike configuration, the frame is also designed to accommodate a double-chainring setup, using a dedicated mount that complies with the standards set by groupset manufacturers.

Disc brakes

160 mm discs front and rear, or a mixed setup: 160 mm at the front and 140 mm at the rear.

Staggered wheels

For the wheels, too, we offer a differentiation between front and rear: a 50 mm profile at the front, 70 mm at the rear.

Created for Deda Elementi

Progettata per alloggiare componenti Deda Elementi come il manubrio integrato in carbonio Alanera RS. In futuro amplieremo la gamma con Columbus e Vision, per garantire la miglior scelta possibile.

Technical data sheet

Frame	Custom Deda Acciai tubing, 7005 aluminum alloy
Headset	Integrated into the tubes, produced via 3D printing
Upper bearing	Ø 49 mm (reduced from 52 mm) for lower aerodynamic drag
Wheel arch	Tires up to 32 mm
Rear triangle	High-positioned back panel for greater comfort
Transmission	Single chainring; provision for a double chainring setup with a frame-specific mount
Brakes	160/160 mm or 160/140 mm rotor (front/rear)
Wheels	50 mm front profile / 70 mm rear profile
Cockpit	Deda Elementi Alanera RS integrated carbon handlebar (coming soon: Columbus, Vision)
Frame weight	to be defined
Production	Designed, engineered, and manufactured in Italy with Italian suppliers

Purchase the frame kit

Taglie

	S (52)	M (54)	L (56)	XL (58)
CF (Center-to-End)	480mm	510mm	535mm	575mm
L (Center-to-Center Length)	525mm	545mm	565mm	585mm
A° (Steering Column Angle)	74°	73,5°	73,5°	73°
B° (Steering Angle)	70,5°	71,5°	72,5°	73°
P (Carriage Length)	410mm	410mm	410mm	410mm
T (Headset)	105mm	115mm	135mm	170mm

Right up to “made-to-measure”

This is the key factor that makes our product unique: the possibility of total customization—even to the point of being “made-to-measure,” should the client require it.
