Tailor-Made Blade: you choose the build, and it’s ready for immediate delivery.

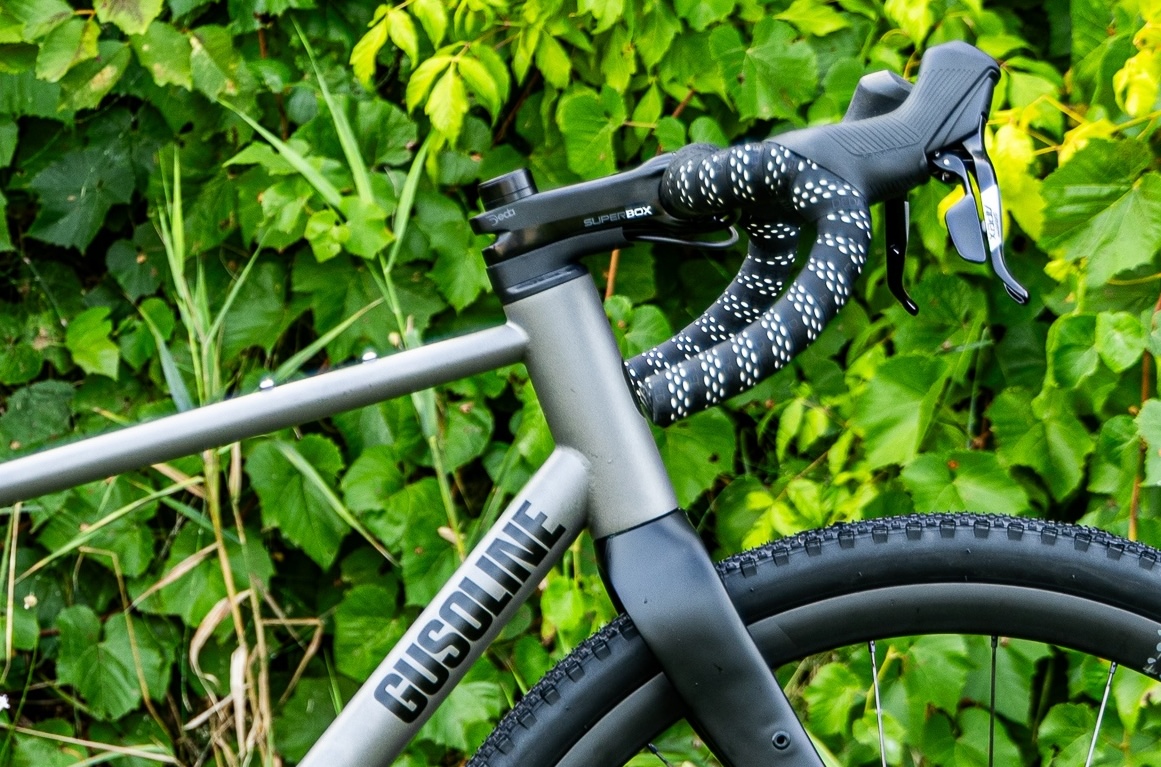

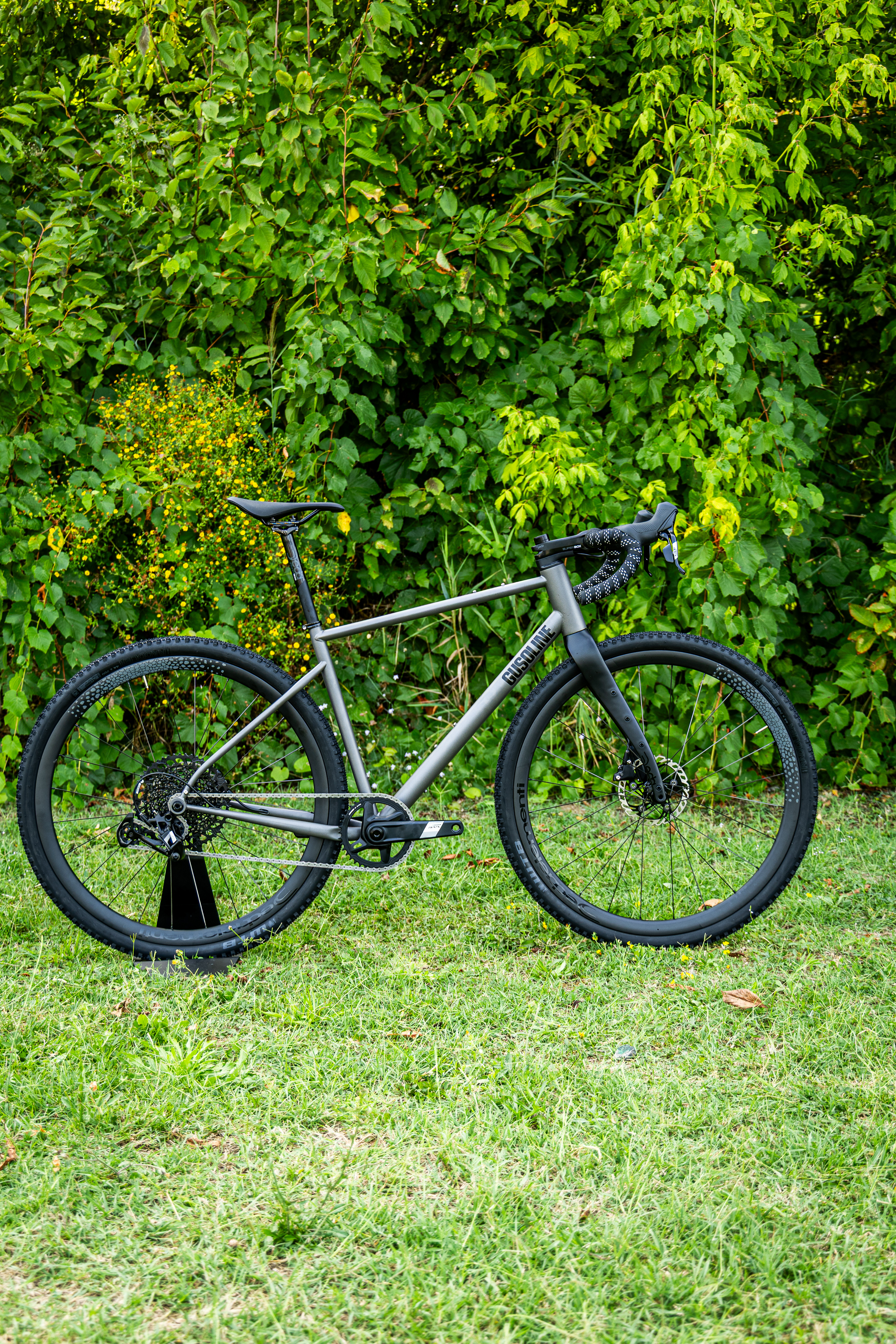

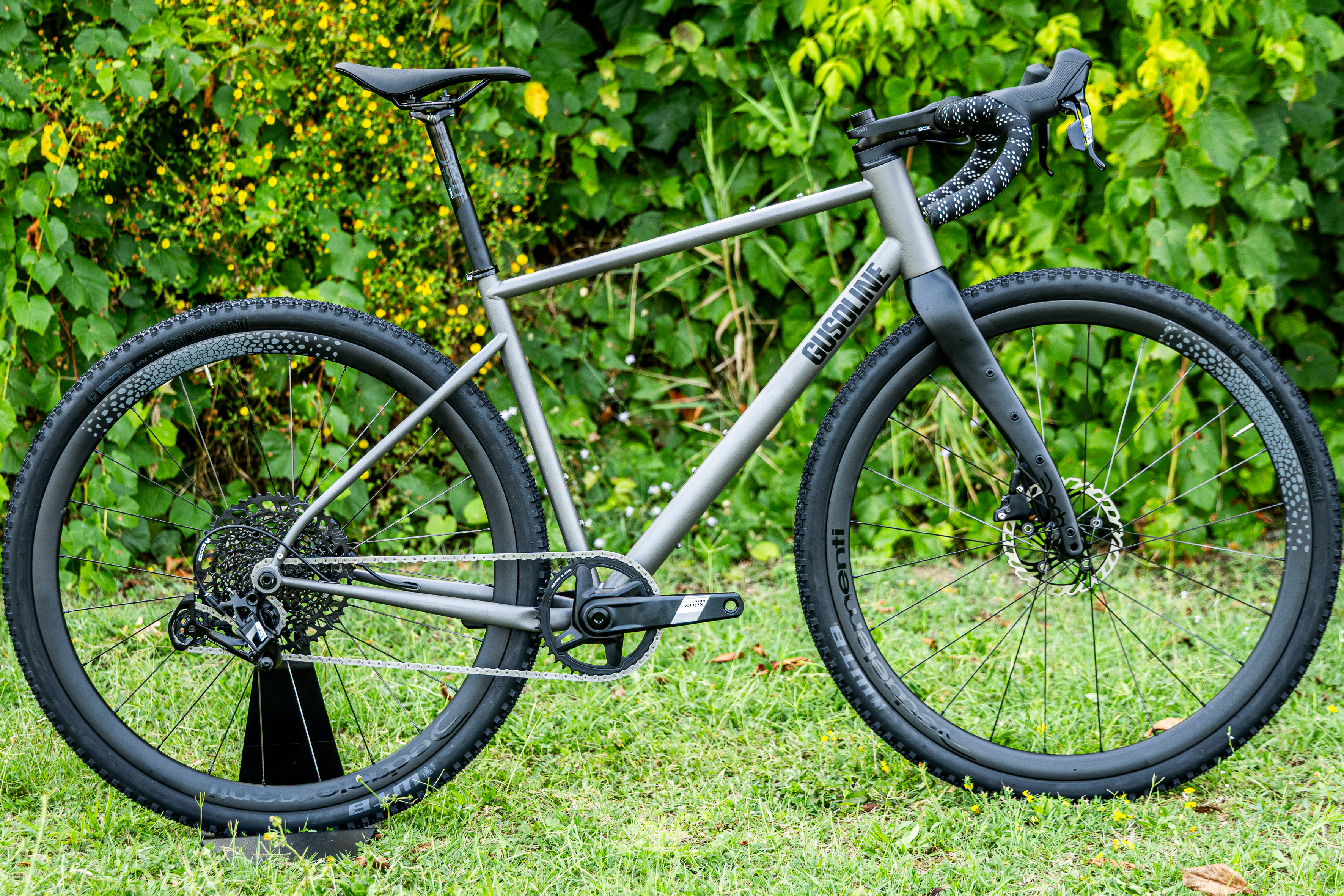

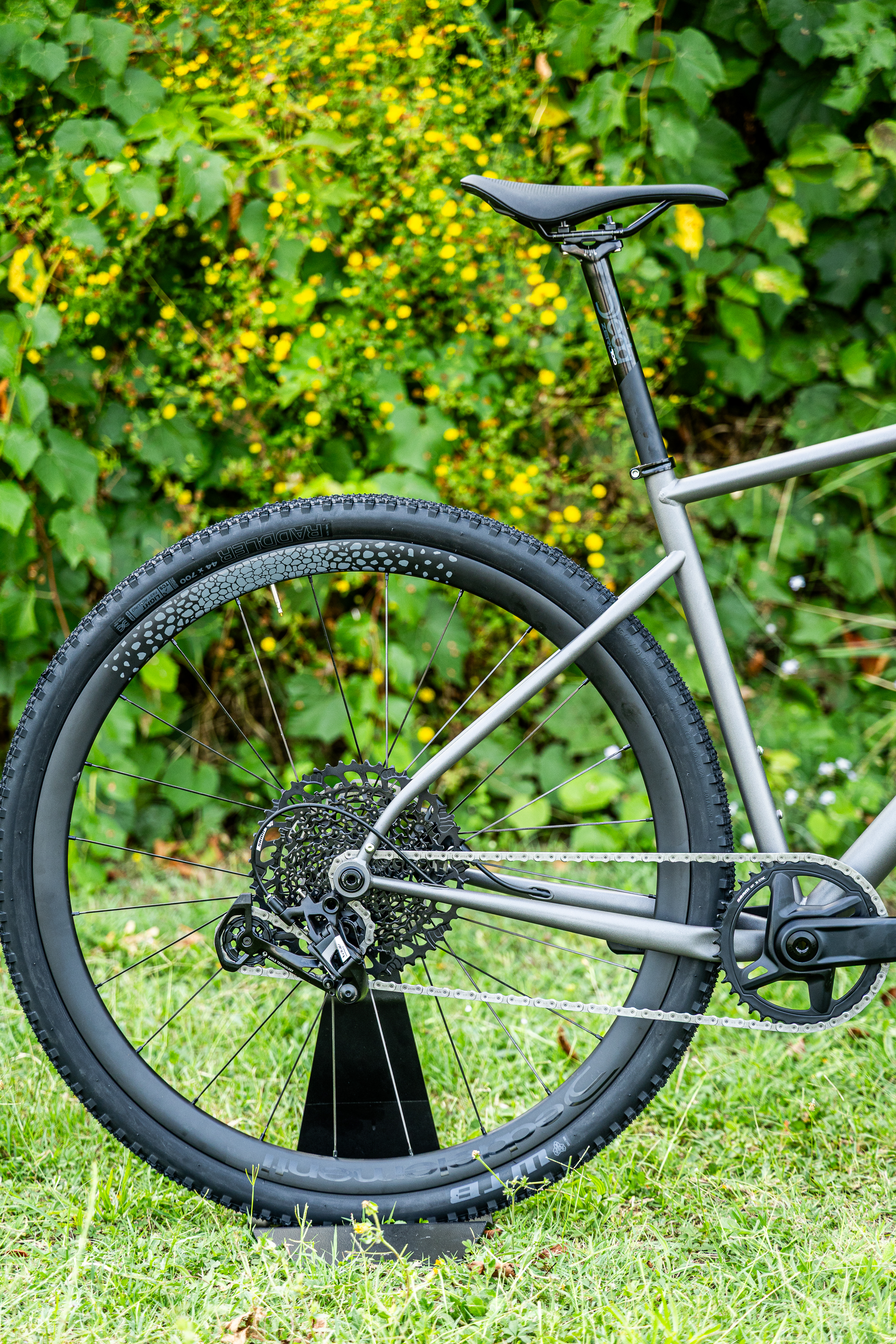

Blade is the Gusoline model designed for those who don’t like to wait: it features a frame made of tubes with varying wall thicknesses, with geometry carefully engineered to balance responsiveness, comfort, and tire clearance—and it’s available in stock.

The build, however, is entirely up to you. You select the groupset, wheels, handlebars, saddle, and tires based on how you ride, ensuring your Blade meets your specific needs from the very first kilometer.

If you’d like to make it stand out visually, you can even customize the color of the fork (optional).

It follows the same philosophy as every other Gusoline—only, in this case, it arrives much sooner.

The Blade comes in standard frame sizes, ready for immediate delivery.

You get to decide:

the build

the color of the fork (optional, upon request)

SRAM MIX NEW RIVAL / GX T-TYPE GROUP - NEW RIVAL AXS 12V CONTROLS - APEX 1V CRANKSET - SRAM GX / T-TYPE AXS DEARBOX - SRAM T-TYPE 10X52 CASSETTE - SRAM T-TYPE 12V CHAIN

Configuration
Frame and fork

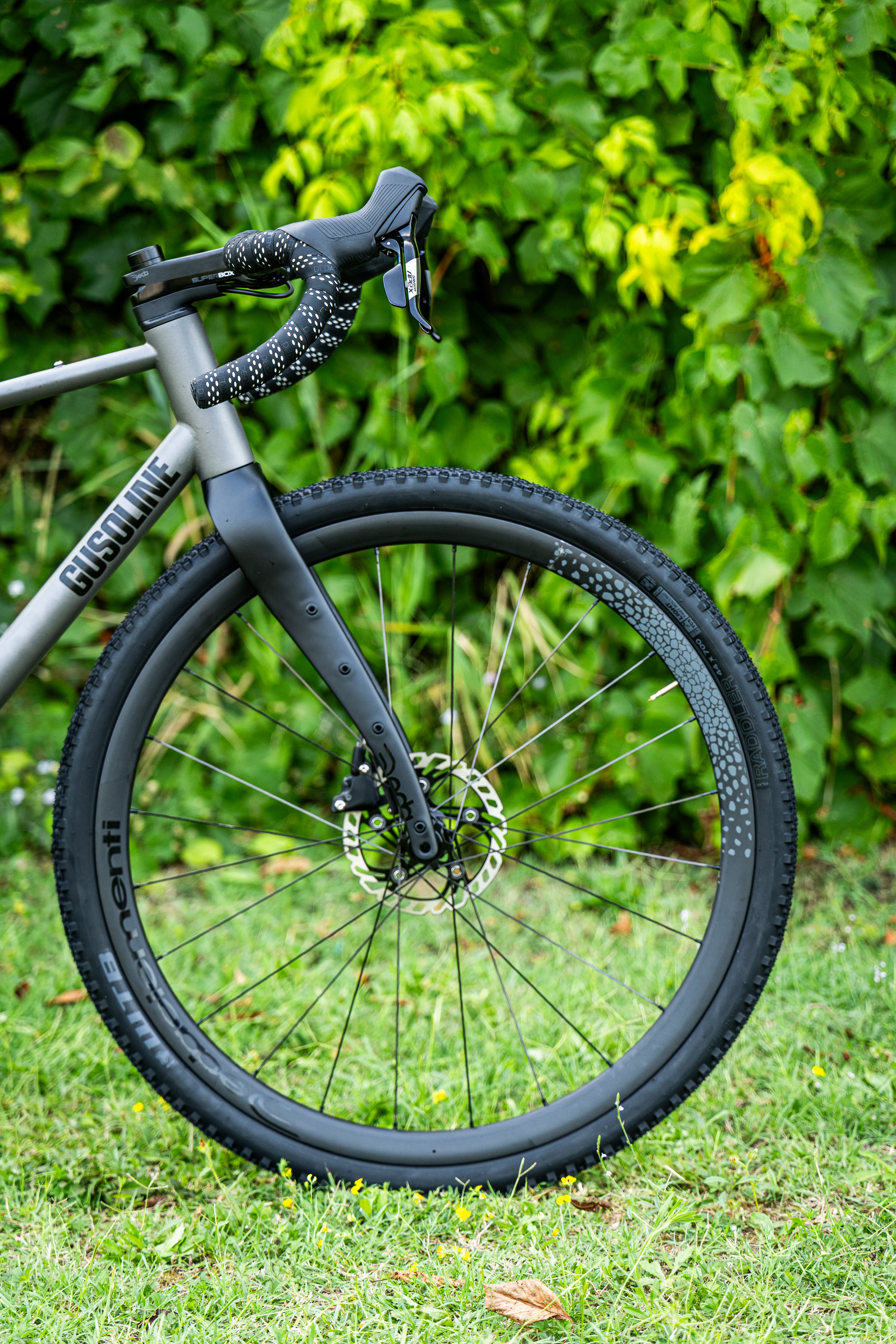

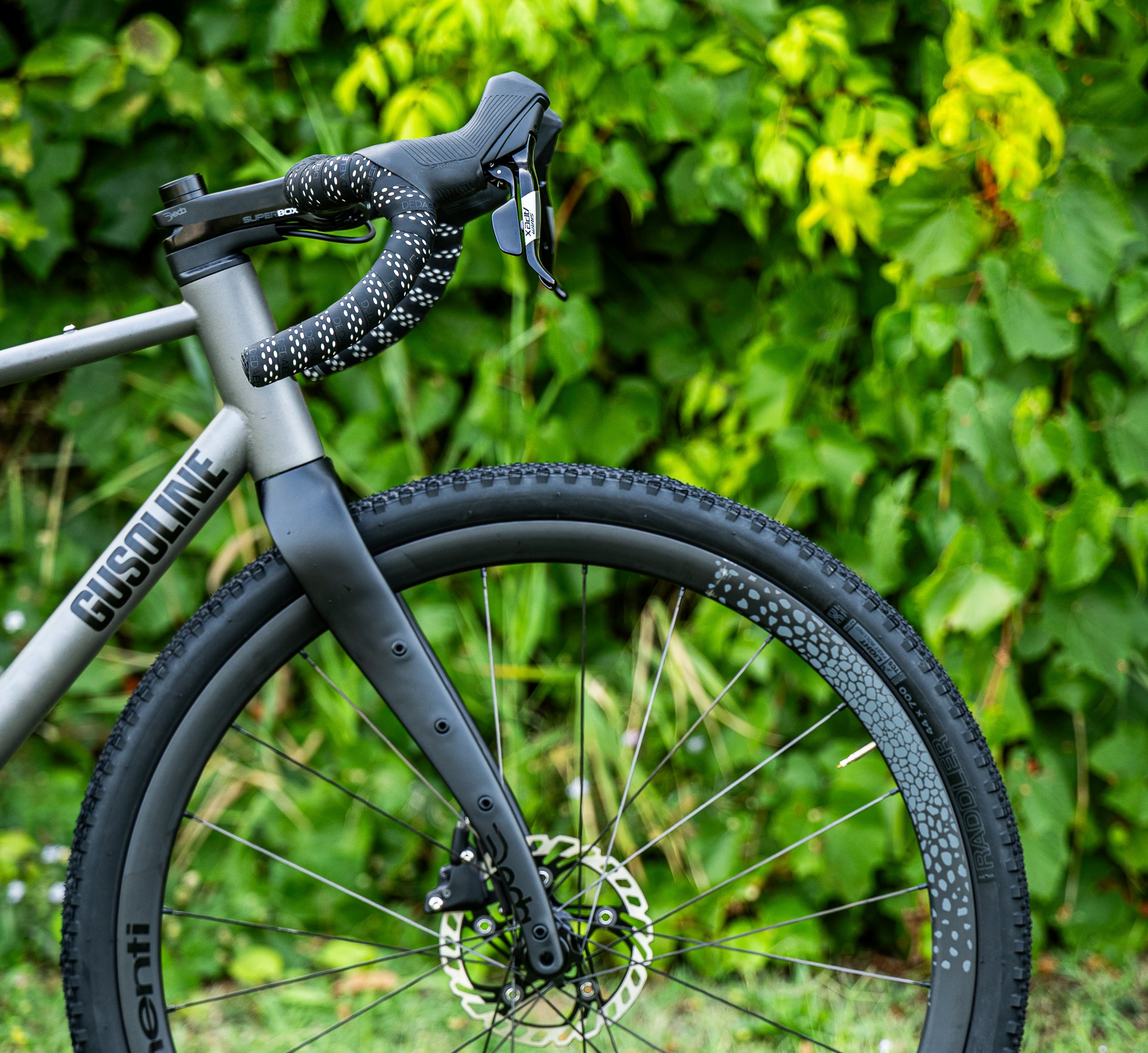

BLADE FRAME WITH DEDA STEEL TUBES, DEDA CURVY CARBON FORK, INTERNAL CABLE ROUTING
Measures
S - M - L - XL (standard, in stock), XS - XXL (upon request). Option to create a "custom-fit" bike.
Color

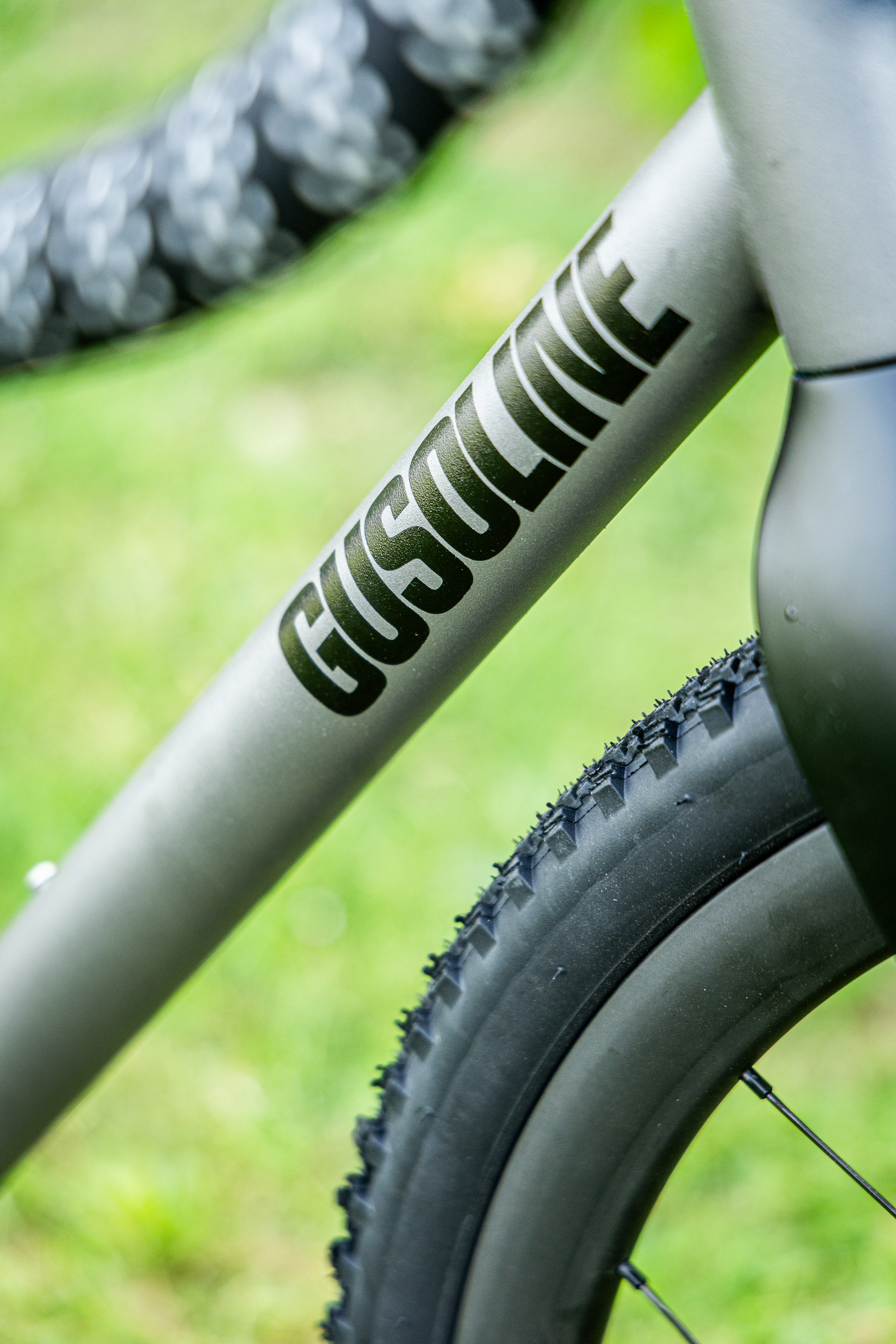

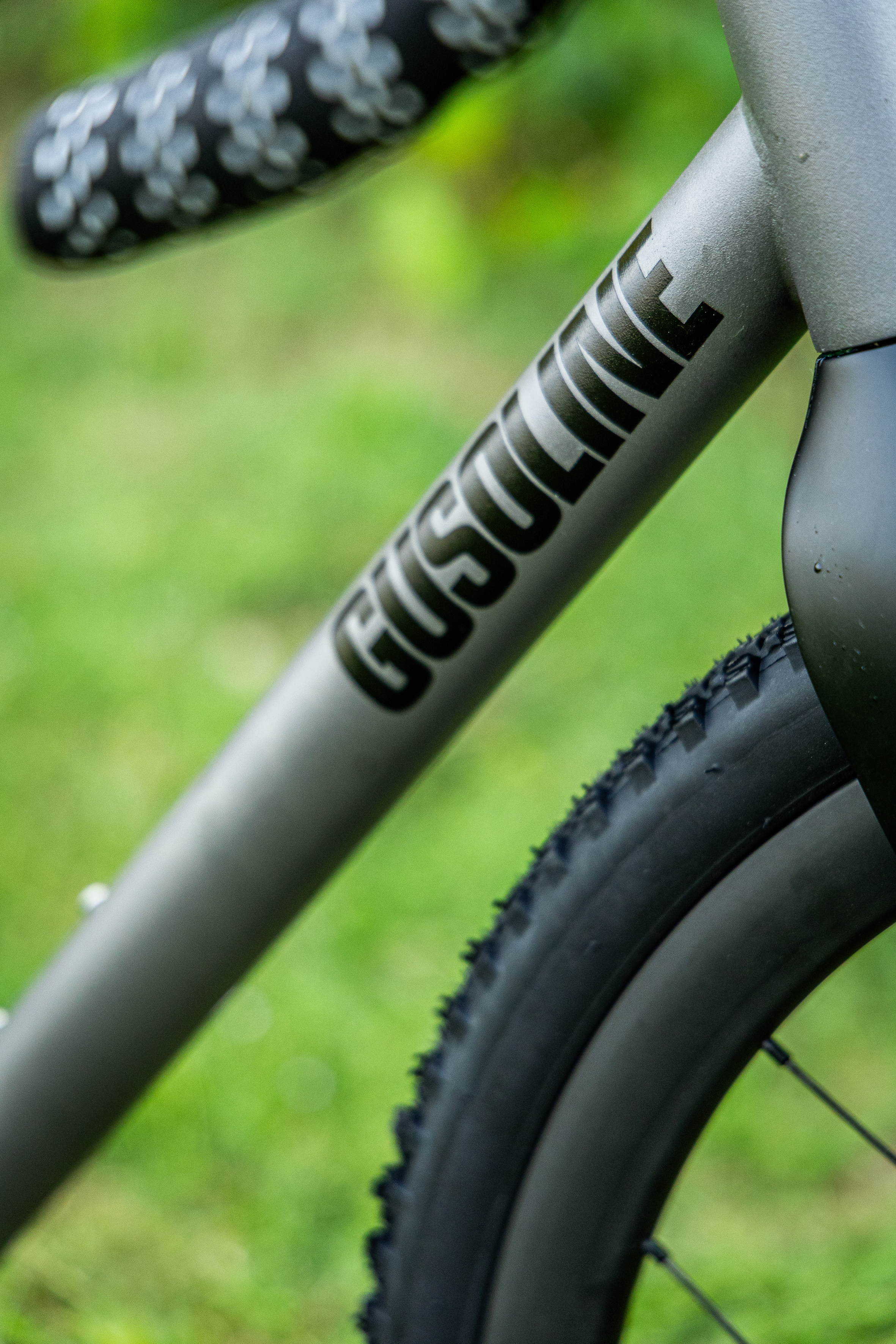

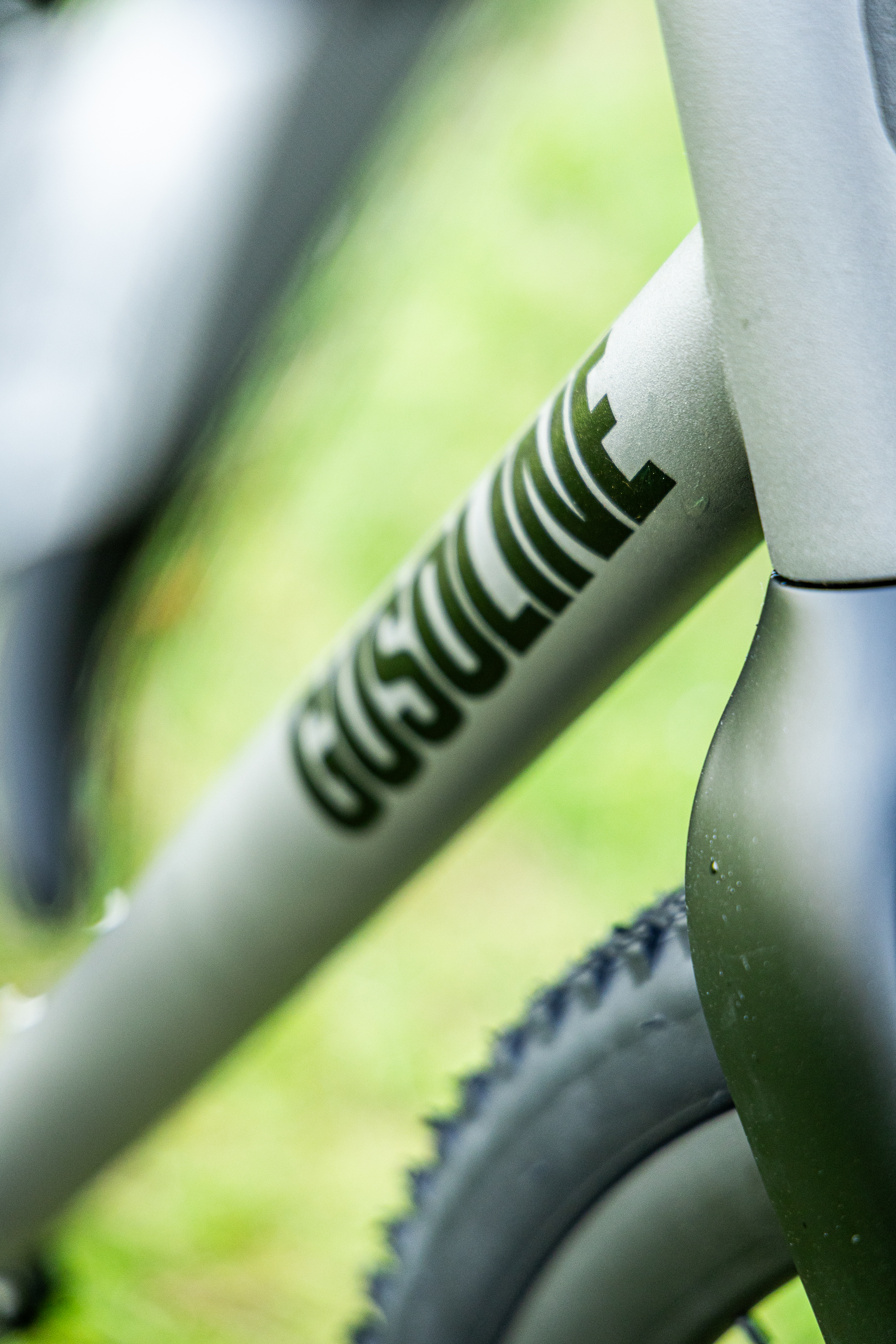

FRAME: URBAN GREY WITH TRIVALENT CHROME FINISH, BLACK LOGO, AND MATTE CLEAR COAT. FORK: MATTE BLACK FINISH (STANDARD). N.B. OPTION TO CUSTOMIZE LOGO AND FORK (OPTIONAL).
Group

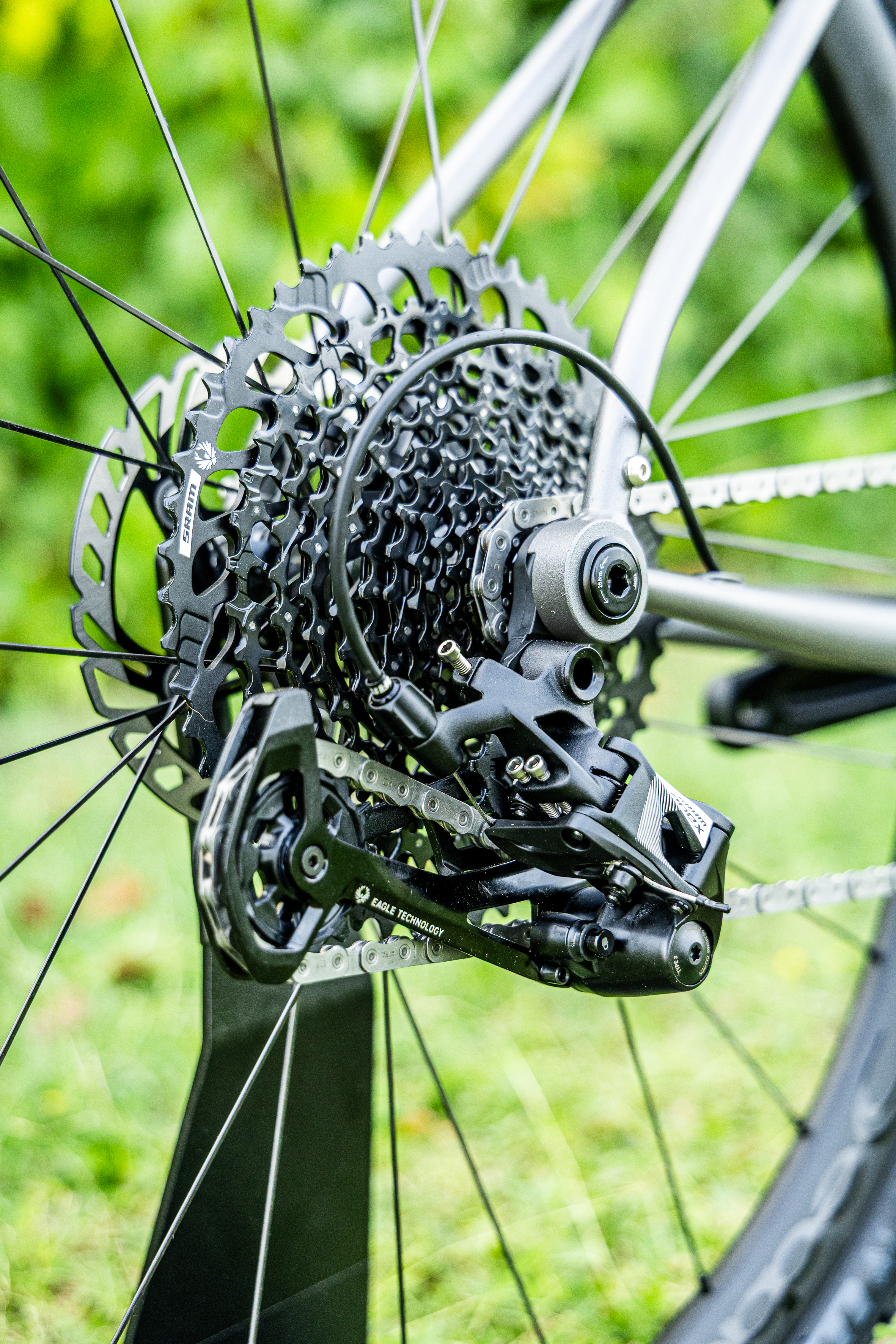

SRAM MIX RIVAL / GX T-TYPE, RIVAL CONTROLS (MODEL 2025/2026) AXS 12V, APEX 1V CRANKSET, SRAM GX / T-TYPE AXS DEARBACK, SRAM T-TYPE 10X52 CASSETTE, SRAM T-TYPE 12V CHAIN, BOTTOM BRACKET: T47, N.B. It is possible to install a double chainring setup with both mechanical and electronic SRAM groupsets. For Shimano, a double chainring setup is possible with the mechanical version, but not with the electronic version due to the space taken up by the battery.
Handlebar stem

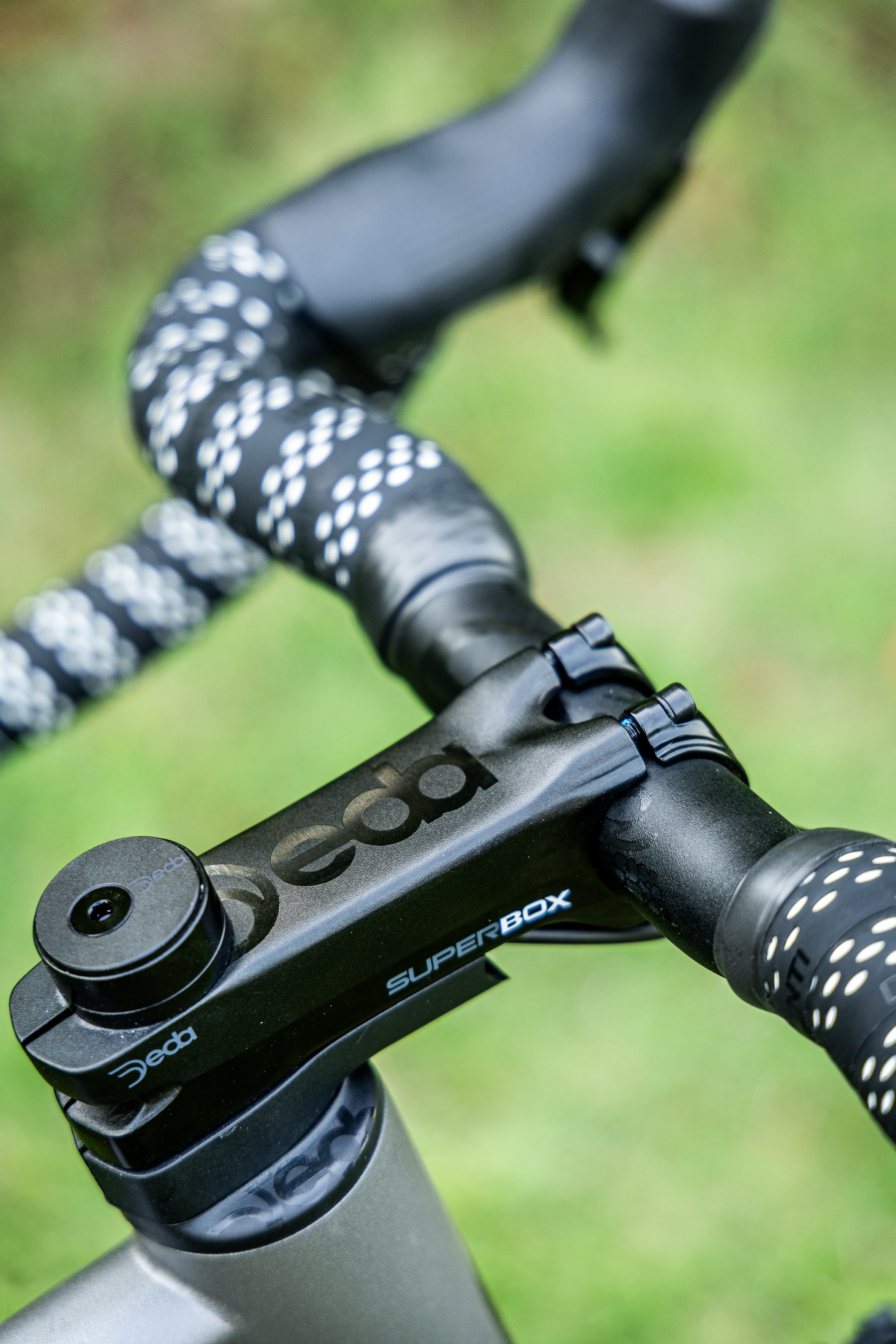

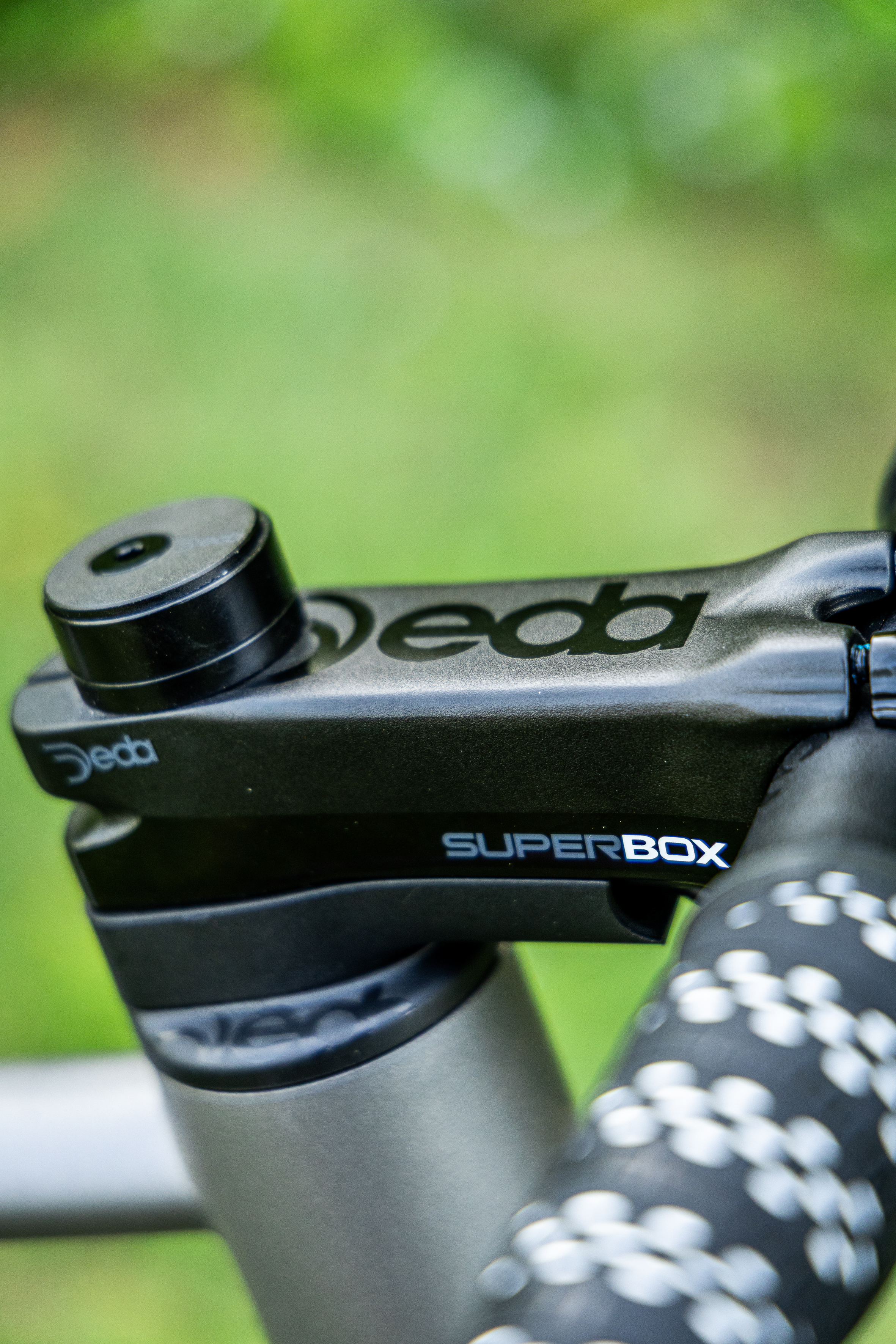

DEDA ZERO2
Handlebar bend
DEDA GERA ALLOY
Handlebar tape
DEDA LOOP
Saddle
SELLE ITALIA: NOVUS BOOST EVO SUPERFLOW
Bicycle seatpost
DEDA ZERO2.
Wheels
FULCRUM RAPID RED 500, FRONT HUB: 100 mm, REAR HUB: 142 mm
Tires
HUTCHINSON TUNDRA 700x45
Size
Handlebar curve
Seatpost
Wheels
Total
€5,199.01
Taglie
S (52) M (54) L (56) XL (58)
CF (Center-to-End) 450 mm 470 mm 500 mm 520 mm
L (Center-to-Center Length) 540 mm 550 mm 560 mm 575 mm
A° (Steering Column Angle) 75° 74° 73,75° 73,5°
B° (Steering Angle) 70,5° 71° 71,5° 71,75°
P (Carriage Length) 420 mm 425 mm 425 mm 425 mm
T (Headset) 130mm 150mm 160mm 175mm
